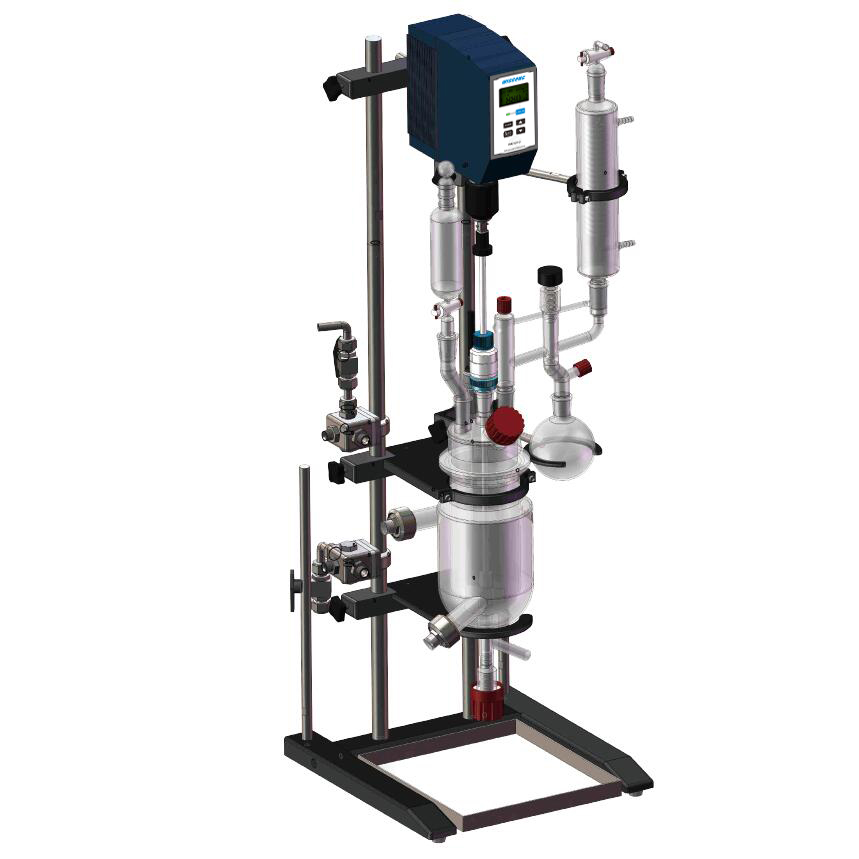

Chemtron Reaction Solutions reactor kits are selected by volume and comprise the basic components required for startup. For a complete application solution Chemtron is proud to offer a full range of glassware, accessories, and temperature control equipment to compliment our reactor kits.
Reactor kits include the following components:
* Support Stand
* Vessel with drain valve
* Shaft and agitator(s)
* Bearing
* Lid with clamp and o-ring
* Overhead stirrer with shaft couplings
* Condenser
* Jacket adapters
* RTD probe adapter
Order Code: JRS.1500.03
* 100mm Schott Duran Flange
* 1in BP Coupling Jacket Connections
* M16x1 Male Adapters
* Alihn Condenser
* 0-12mm JRS Valve?
* 12.5mm O.D. Drain Valve Sidearm
* 60mL Addition Funnel
* 5 neck Lid with 45° Angled GL-45 Port
Includes the following items Order No. | Description | Qty. | JRS.2701.01 | 500mL FLASK, CYLINDRICAL, JACKETED,100mm LF FLANGE | 1 | JRS.3103.02 | JRSTM Drain Valve 0-12mm | 1 | JRS.2904.01 | Lid, 100mm, 5 Neck, 24/40 CN, (3) 24/40 SN, 45° Angled GL-45 SN | 1 | JRS.1701.02 | 100mm PTFE Encapsulated O-Ring (I.D.110mm,Wire D. 5mm) | 1 | JRS.2401.02 | CLAMP, LF FLANGE，100mm | 1 | JRS.2301.01 | CAP, SOLID, GL45（H993-45） | 1 | JRS.2302.05 | CAP, SOLID, GL18 | 1 | JRS.2012.02 | Vacuum Adapter ,24/40 | 1 | JRS.2020.01 | Offset Adapter，24/40 | 2 | JRS.2101.01 | Stopper，24/40(8250-12) | 1 | JRS.9016.130 | Temperature Sensor Adapter，O.D.=7mm，24/40 | 1 | JRS.2506.01 | CONDENSER, COIL, JACKETED，300mm,24/40 | 1 | JRS.2803.02 | Funnel, Addition, 125mL, 0-4mm Metering Valve, 24/40 Joints | 1 | 7643-108 | PTFE SLEEVES ,24/40，12PK | 1 | JRS.2404.02 | KECK CLIP,24/40(7598-24) | 1 | CR100200 | OHS.1D Blender | 1 | 005.104.7 | 8mm PTFE/PEEK Stirring bearing | 1 | JRS.3006.00 | 8mm SHAFT COUPLING | 1 | 005.250.8.2 | 8mmPTFE Stirring paddle，L=400mm， 50mm | 1 | JRS.2619.01 | DISTILLATION REFLUX / DIVIDER HEAD CLAISEN STYLE | 1 | 6887-223 | 200mL FLASK, Single Neck | 1 | 11081-21 | CLAMP HOLDER, Pilot Plant(Condenser Clamp，Flask Clamp) | 2 | 6101-000 | Multi channel regulating valve outlet | 2 | 6102-000 | Multi channel regulating valve inlet | 1 | 8930220 | 0.5m Metal tubing | 2 | JRS.2009.01 | Adapter, Stainless Steel, M16x1 Male to 1in Beaded Pipe | 2 | JRS.2405.01 | 1in Beaded Pipe Coupling | 2 | 8981015 | 300x6mm, SS/PTFE, 3m cable | 1 | 8970442 | M16x1，90°Elbows，2x54mm | 1 | JRS.6001.01 | 305 x 280mm Stainless steel liquid plate | 1 | JRS.1602.01 | H Stand(1200mm H Base Stand，with vessel pallet) | 1 | JRS.1602.02 | 100mm Reactor hold ring | 1 |
|
