Pilot Plant For High Performance Applications Scaling Up To The Kilolab
* We offers a wide range of pilot plants for didactics, research and production. The systems are modular, flexible, user-friendly and can be integrated anytime with various accessories.
* Easly configurable range of Pilot Plants from 10 to 100 liters of usable volume .
* Smart supporting structure interely made of AISI 316 Stainless Steel allow the expansion the basic configuration.
* A wide range of instruments from the most reliable brands can be intgrated with the reactor:pH meter,Conducivity meter ,Redox meter, Cristallization monitoring probe etc.
* As option a software running on PC can be supplied for the full logging, the monitoring and the controlling of the connected instruments.
* The unit came standard with secure solvent resistant weels for extreme flexibility on using the lab or hood space.
* A spill containment tray is part of the basic configuration.
Reactor kits include the following components:
* Support Stand
* Vessel with drain valve
* Shaft and agitator(s)
* Bearing
* Lid with clamp and o-ring
* Overhead stirrer with shaft couplings
* Condenser
* Jacket adapters
* RTD probe adapter
No. | Order No. | DESCRIPTION |
1 | KC-450/400 50L | DISMOUNTABLE JACKETED VESSEL DN450/400 50L DISCHARGE DN50 |
2 | SQTK032037 | GLASS/PTFE VALVE DN50 WITH NO DEAD VOLUME |
3 | KC-GC450 | COVER DN450 7 NOZZLES WITH: |
A | —— | -CENTRAL DN50 FOR STIRRING, |
B | —— | -DN80 PTFE NOZZLE FOR SOLIDS, |
C | —— | -DN40 WITH GLASS THERMOMETER POCKET FOR PT100, |
D | —— | -DN40 WITH WELL FOR PH, |
E | —— | -DN40 FREE NOZZLE |
F | —— | -DN25 WITH DIP PIPE AND ADAPTER FOR LIQUIDS, |
G | —— | -DN80 FOR VAPOURS |
4 | SQSO058802 | BOROSILICATE GLASS 3.3 REDUCED BEND DN100/50 |
5 | SQDI031183 | REFLUX SEPARATOR DN80 |
6 | SQRI069239 | GLASS THERMOMETER POCKET FOR PT100 |
7 | SQTK032087 | GLASS BEND 90° DN15 |
8 | SQEG062846 | 10L GRADUATED FEED AND RECEIVING VESSEL |
9 | SQQE073336 | HORIZONTAL COIL HEAT EXCHANGER 0,75MQ INC5° DN80DX |
10 | GZRI057578 | RUPTURE DISK GRAPHITE/PFA DN50 |
11 | SQAO075105 | HIGH TORQUE-HIGH SPEED OVERHEAD STIRRER |
A | —— | SPINDLE MOTOR |
B | —— | LANTERN WITH MECHANICAL SEAL GRAPHITE/PTFE |
C | —— | STAINLESS STEEL STIRRING SHAFT/PTFE COATED |
12 | SQRS069272 | STAINLESS STEEL FRAME FOR REACTOR WITH COVER DN450 |
|
| OPTIONAL ACCESSORIES |
13 | MLFM069215 | DATALOGGER PHMETR (optional) |
14 | MLFM042649 MLMF067082 | PH ELECTRODE AND CABLE (optional) |

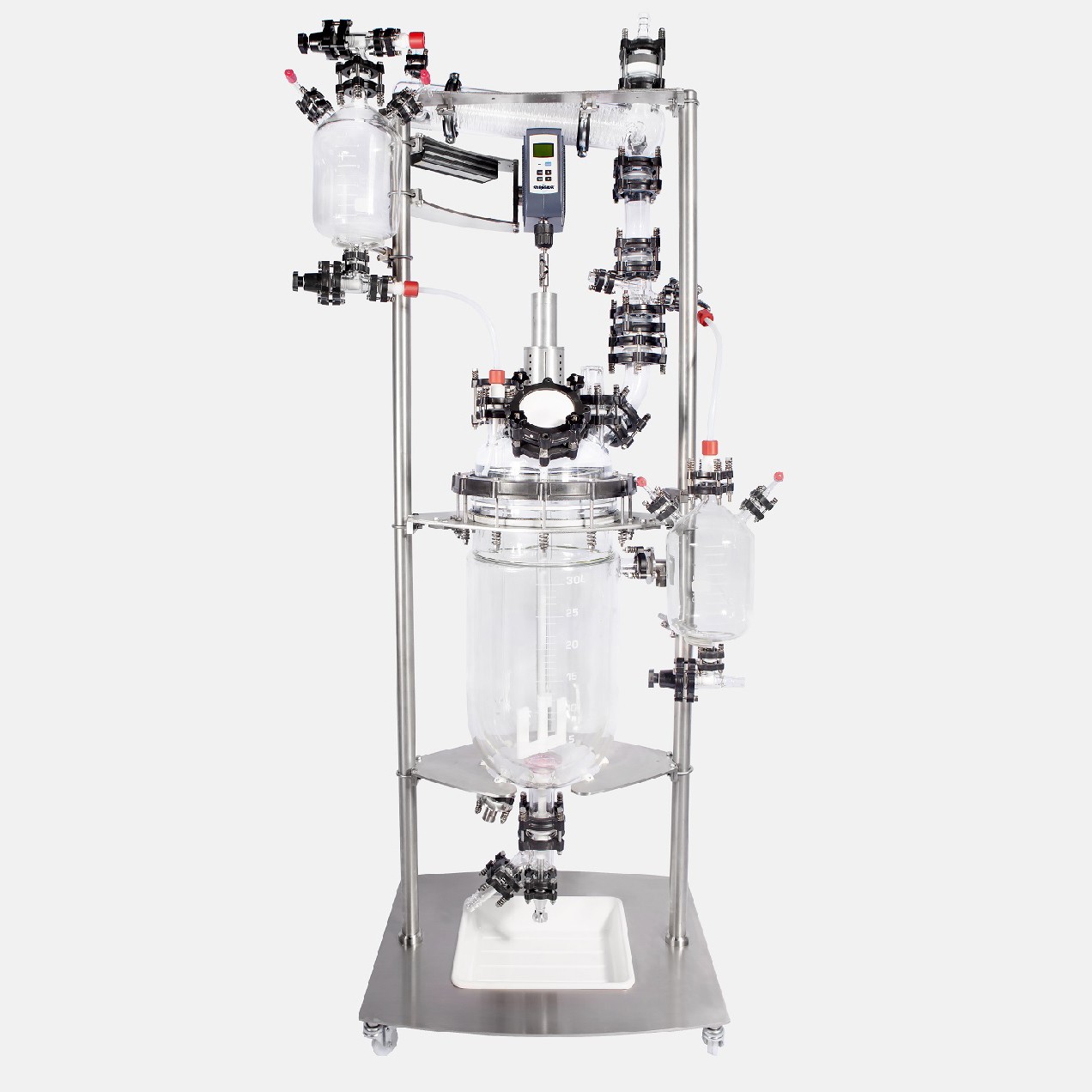

Complete reactor system on our unique open air, auto-center frame. Industrial body, economical overhead stirring system and industrial connections. Supplied with the components listed below and numbered on the 3D schematic drawing. Optional items are listed on the following pages.
√ Atex version available upon request
*Pneumatic motor available
