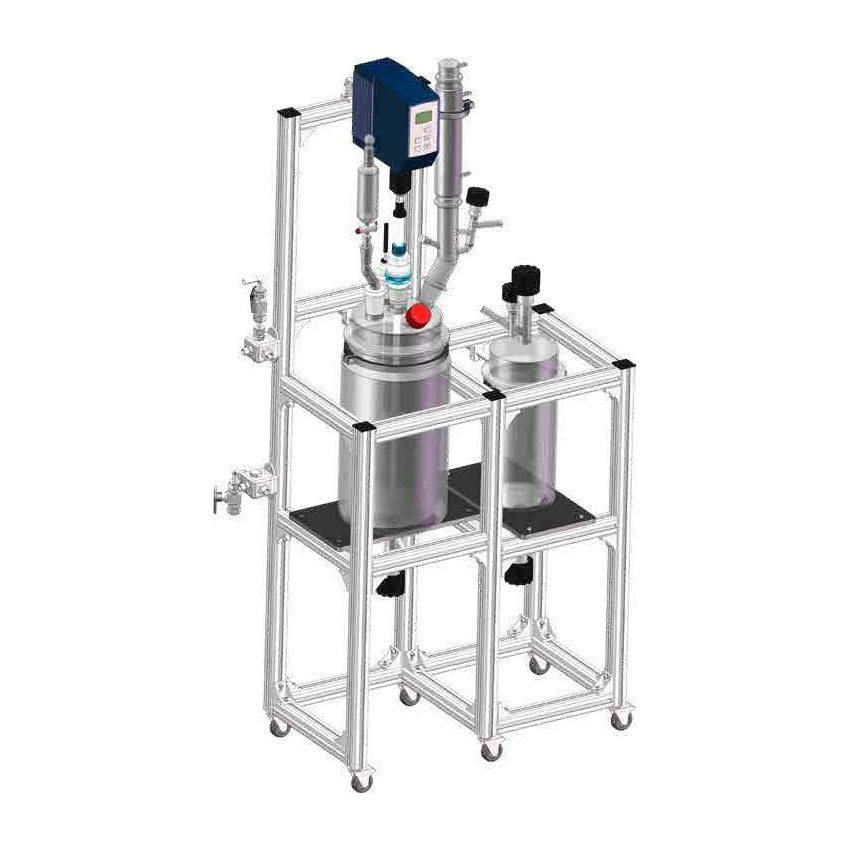

Chemtron Solutions reactor kits are selected by volume and comprise the basic components required for startup. For a complete
application solution Chemtron is proud to offer a full range of glassware, accessories, and temperature control equipment to
compliment our reactor kits.
Reactor kits include the following components:
* Support Stand
* Vessel with KF-50 drain valve
* Shaft and agitator(s)
* Bearing
* Lid with clamp and o-ring
* Overhead stirrer with s
* Spiral Condenser
* Jacket adapters
* RTD probe adapter
Order Code: JRS.1500.10
* 300mm DN Flat Flange
* DN25 Ball Joint Jacket Connections
* M24x1.5 Male Adapters
* Jacketed Coil Condenser
* KF50 Drain Valve
* 28mm Glass Shaft
* 45° Agitators, 203.2mm O.D
* 7 neck Lid with 45° Angled 100mm Port
Includes the following items Order No. | Description | Qty. | JRS.2906.02 | Lid, 300mm KF Flat Flange, CENTER NECK 45/50/2.0in BPT(1)， SIDE NECK 45/50/2.0in BPT(3)，3in Beaded Pipe@ 45°(1)， 100mm LF@ 45°(1) | 1 | JRS.2707.02 | 30L FLASK, CYLINDRICAL, JACKETED, with 300mm Flange | 1 | JRS.2402.01 | 300mm Flange Clamp | 1 | JRS.2402.05 | 300mm PTFE Gasket | 1 | JRS.2909.01 | LID, LF FLANGE, BLANK,60mm | 1 | JRS.3102.01 | KF50 Drain Valve | 1 | JRS.1603.01 | 30L~50L Aluminum Stand support | 1 | JRS.1603.12 | 30L~50L Stainless Steel Stand support | 1 | JRS.2010.02 | Adapter, Stainless Steel, M24x1.5 Male to 1in Beaded Pipe | 2 | JRS.2403.01 | KF-25 COUPLING, DN FLANGE | 2 | JRS.2403.25 | KF-25 GASKET, DN FLANGE, PTFE | 2 | JRS.1701.02 | 100mm PFA O-Ring | 1 | JRS.2401.02 | 100mm Flange Clamp | 1 | JRS.2101.02 | Stopper，45/50 | 1 | JRS.2622.02 | Distillation, Head, Reflux/Divider, In-Line 45° | 1 | JRS.2514.02 | CONDENSER, COIL, HIGH EFFICIENCY 457.2mm Jacket length 2.0in | 1 | JRS.2017.15 | Adapter, Inlet or Outlet. 90' 3 0in BP, 14mm Hose Barb | 1 | JRS.2405.03 | 2in BEADED PIPE COUPLING | 1 | JRS.2405.04 | 3in BEADED PIPE COUPLING | 3 | JRS.2036.03 | 1/2" to 1/2", ADAPTER, COMPRESSION, UNION, PTFE | 2 | JRS.2039.03 | 1/2" ADAPTER, COMPRESSION, UNION ELBOW, PTFE | 1 | JRS.2040.03 | 3/4" to 1/2"， ADAPTER, COMPRESSION, UNION, PTFE | 1 | JRS.3201.03 | I.D.=3/8", O.D.=1/2", PFA Tubing | 1 | JRS.2013.10 | PTFE ADAPTER, PROBE, UNIVERSAL, for Temperature Sensor | 1 | JRS.2013.16 | Gray, for use with 6.0mm Diameter probes | 1 | CR3092.01 | OSH.6 Blender | 1 | JRS.1603.06 | OHS Blendeer Clamp | 1 | 8050-08 | BEARING,PTFE,28MM,45/50 | 1 | 8080-14 | STIR SHAFT,45in LGTH,28mmOD | 1 | 8093-35 | 150MM TURBINE AGITATOR | 1 | 8091-36 | AGITATOR,PTFE,28MM,178MM BLADE 28mm | 1 | 6472-157 | 28MM SHAFT CHUCK | 1 | 8127-28 | COLLAR,GLS/PTFE,28MM,W/GSKT | 1 | 6472-159 | 3/8" FLEXIBLE BEAM | 1 | JRS.2715.10 | Reaction Vessel 10L Unjacketed Cylindrical Body,150mm 0-Ring Flange. 0·12mm Valve | 2 | JRS.1701.03 | 150mm PFA O-Ring | 2 | JRS.2910.10 | RESERVOIR LID, 150mm 0-12 INLET VALVE W/.500~ | 1 | 4066 | 150mm Flange Clamp | 2 | 6103-000 | Multi channel regulating valve outlet | 1 | 6104-000 | Multi channel regulating valve inlet | 1 | 8930220 | 0.5m Metal tubing | 2 | 8981016 | 900X6mm,SS/PTFE,3m cable | 1 |
|
