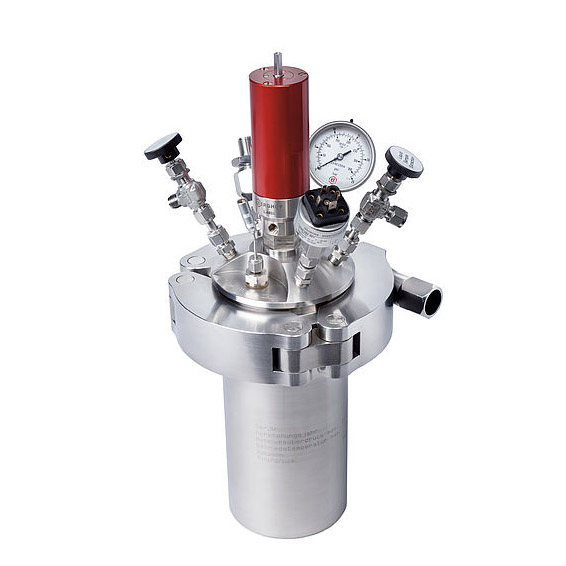

大容量高壓套裝：BR-4000
* 高壓反應釜,可提供不銹鋼316Ti,哈氏合金,及不銹鋼帶PTFE襯套(可提供包括釜體、釜蓋及所有與反應物料接觸) 等多種材質
* 標準反應釜容積：5500ml
* 配套 PTFE內襯標準套裝容積：4700ml
* 其他類型也可提供
* 釜體釜蓋采用快開夾連接方式 ,無需工具 ,輕松手動開合
* 反應釜采用錐形法蘭密封 ,密封圈可提供 PTFE, Viton?, 或 Kalrez?.
釜蓋提供8個接口, 功能分別如下:
* 溫度計套管
* 爆破片
* 壓力表或壓力傳感器
* 放氣閥
* 兩個加熱或制冷盤管
* 兩個備用接口 ,可以連接氣體采樣套件,液體采樣套件等
套裝技術參數
| 訂貨號 | 名稱 | 描述 |
大容量高壓反應釜套裝：BR-4000 |
反應釜釜蓋及冷卻盤管 （包含FPM 材質的O 型圈，其它材質的O 型圈需單獨訂購） | 5745105 | BR-4000 釜蓋 SS | Made of SS 316 TI/ Hastelloy C-4 without PTFE-lining for usagewithout magnetic clutch and reactor vessels without PTFE-insert. |
5745107 | BR-4000 釜蓋 SS-RV | Made of SS 316 TI/ Hastelloy C-4 without PTFE lining for usage with magnetic clutch and reactor vessels without PTFEinsert. |
5745108 | BR-4000 釜蓋 SS/PTFE | Made of SS 316 TI/ Hastelloy C-4 with PTFE lining for usage without magnetic clutch and reactor vessels with PTFEinsert.. |
5745109 | BR-4000 釜蓋 SS/PTFE-RV | Made of SS 316 TI with PTFE lining for usage with magnetic clutch and reactor vessels with PTFE-insert |
5745086 | 平衡圈 FPM | Made of SS 316TI with O-seal rings made of FPM(Viton) for operation of PTFE-lined reactors without lining. |
反應釜釜體和PTFE內襯 | 5745021 | BR-4000 釜體 SS | Made of SS 316 TI , volume 5500ml for usage with or without PTFE-insert |
5746090 | BR-4000 PTFE 襯套 | Made of PTFE, 4700ml |
O 型密封圈 | 5900616 | O-型圈 138x5.0mm FPM/FEP | Made of FPM/FEP for Reactor lid with and without PTFE lining |
5900617 | O- 型圈138x5,0mm FPM | Made of FPM (viton) for Reactor lid with and without PTFE lining |
5054072 | O- 型圈138x5,0mm FFKM | Made of FFKM (Kalrez) for Reactor lid with and without PTFE lining |
標準安全套件 | 5745110 | BR-4000 標準安全套件 SS | Made of SS 316 TI consists of rupture disc (Monel, 200bar) with rupture disc holder and vent valve(nominal width 4mm) |
5745120 | BR-4000 標準安全套件帶泄壓閥 SS * | Made of SS 316 TI consists of rupture disc (Monel, 200bar) with rupture disc holder, vent valve (nominal width 4mm) and a pressure relief valve |
其他可選配件、備用件 |
| 特殊配件 | BR4000恒壓液體進樣套件等 |
| 可選附件 | BR4000多種附件可選，氣體閥門、液體采樣單元、液體加氣體采樣單元、濾芯、氧氣閥門更換附件 |
| 壓力測量附件 | 多量程壓力表、壓力傳感器可選；另有高壓泄壓管、恒壓控制器可選 |
| 備用件 | 爆破片、O型圈、泄壓閥彈簧、排氣管密封圈多型號可選 |
| 加熱攪拌單元 | 多型號頂置式攪拌、攪拌槳、溫度控制器、加熱套、恒溫夾套、熱電偶傳感器可選 |
| 釜蓋配件 | 螺絲、安裝十字形支架、閥門、卡套接頭、標簽紙、液體采樣導管等 |
BR-4000 電動升降支架 | CR5744000 | BRS-4000 | Stand for BR-4000 reactor with Lift motor |
