Chemtron 高壓反應系統—跨時代設計, 德國品質, 不斷創新
防腐蝕性
* 反應釜均為高品質的不銹鋼,哈氏合金或PTFE材質制成
* 不銹鋼材質選擇316SS Ti
* 哈氏合金選擇, 其他金屬材質可選

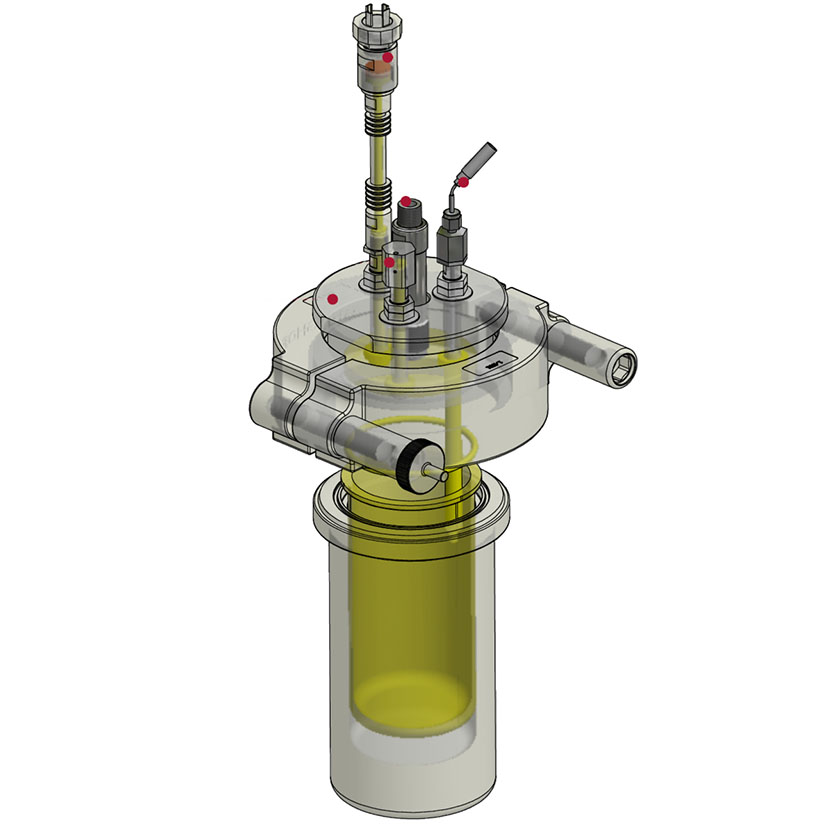

* 如客戶要求最高的防腐蝕性,我們可以提供釜體PTFE 襯套及釜蓋PTFE 襯套,從而在行業內第一個做到了反應釜整體PTFE內襯防腐設計
* 密封圈上我們也使用PTFE，VITON或KALREZ材質的O型圈,以達到最好的密封性和防腐蝕性能
使用便捷性
* 釜體釜蓋的安裝和緊固采用快開式緊固圈設計,操作者無需工具,僅需雙手即可快速方便的閉合或打開反應釜
* 反應釜體及釜蓋PTFE 襯套的安裝和拆卸也極為便利,使用者僅需雙手即可完成
* 所有和外部關聯接口均采用快開口設計,安裝和拆卸非常快速便捷
* 所有閥門的調節均設計有圓盤形轉動手柄,操作手感舒適,控制精度高
* 可提供全自動控制軟件,讓整個反應過程控制自動完成,提高精確度,提高實驗者工作效率
豐富靈活的配件
* 我們提供進氣閥,進液閥,恒壓漏斗,回流冷凝,分水,高壓采樣,高壓進料,壓力顯示控制等多種相關附件,可快速連接到釜蓋
* 可以選配相關的管路,轉接適配器,彎頭等附件擴展反應釜應用
* 客戶可以快速選擇反應釜相關的配套產品,如磁力攪拌,機械攪拌,加熱套,加熱制冷循環器,真空泵,pH計,進料泵等相關設備,并快速連接到系統內
* 可以提供個性化的軟件支持,提高反應釜自動化程度

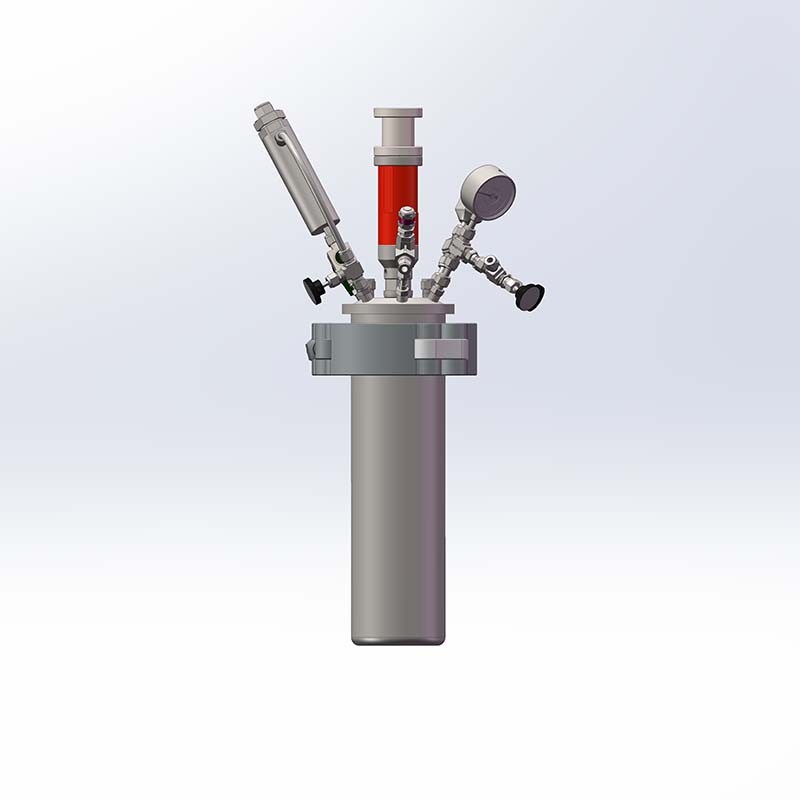

High pressure reactor DB Reator
UP TO 200bar
套裝技術參數
反應釜主體單元 | 5781060 | DB-2000 反應釜套裝 | DB-2000 set of basic reactor made of SS 316TI. All parts in contact with liquid and gas phase are completely lined with PTFE, volume 2000ml. Set includes reactor vessel and lid with PTFE-lining, rupture disc and vent valve. |
溫度測量 | 5781240 | DB-500~DB-2000 T-Sensor NiCrNi PTFE | Standard T-Sensor Type k, NiCrNi Thermocouple within PTFE encased dip tube made of SS316TI for DB-500 | DB-700 | DB-1000 | DB-1500 | DB-2000 |
壓力測量 | 5725660 | Pressure sensor 200bar | Pressure sensor 0 -200 bar, Accuracy 1%, all parts in contact with liquid & gas phase are made of PTFE, Kalrez or Ceramic (Al2O3) |
DB2000配套附件 | 5701017 | PTFE High pressure tubing | PTFE High pressure tubing (2.5m; ID 9mm; 550bar) Exhaust tubing for rupture discs, G3/8" female (inlet) -G 3/8" male (outlet) |
PTFE-Inserts and O-seal rings | 5757926 | O-Ring 85x5,0mm PTFE | DB-1000 | 1500 | 2000 O-Seal ring made of PTFE |
5757924 | O-Ring 85x5,0mm FPM | DB-1000 | 1500 | 2000 O-Seal ring made of Viton |
5757922 | O-Ring 85x5,0mm FPM/FEP | DB-1000 | 1500 | 2000 O-Seal ring made of FPM/FEP |
5054130 | O-Ring 85x5,0mm FFKM | DB-1000 | 1500 | 2000 O-Seal ring made of Perlast |
5054131 | O-Ring 85x5,0mm Viton 890 | DB-1000 | 1500 | 2000 O-Seal ring made of Viton 890, compatible with supercritical CO2 |
5715063 | DB-2000 Insert PTFE | DB-2000 Insert made of PTFE, 2000ml |
加熱套 | CR5708750 | CHM-2000 | Electrical heating jacket for DB-2000, 220V/50Hz, 2000W Working temperature 50 – 300 ℃ , with over-heating protection Julabo LC6 is required for temperature control |
備件及耗材 | 5759480 | Rupture disc 200bar | Rupture disc made of Monel, D 24mm, 200bar with PFA protection foil and certificate |
